Nitto Ridge Grappler® A/T Reviews
Description

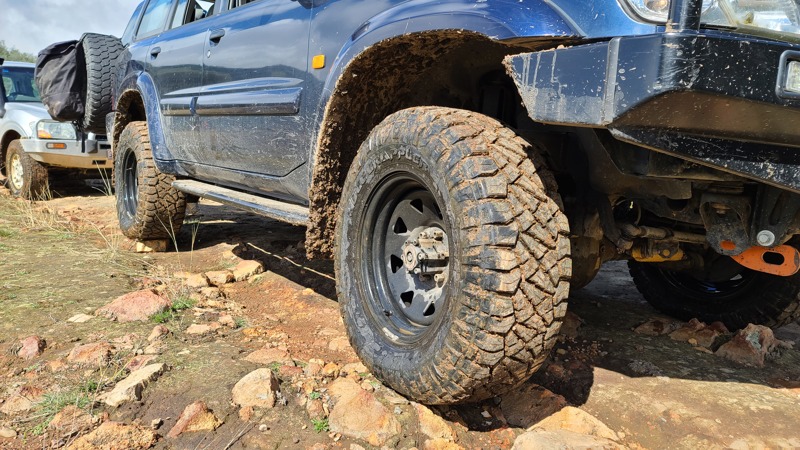

The Nitto Ridge Grappler® represents the next generation of the Grappler family, blending the durability of the Trail Grappler® M/T with the comfort and longevity of Terra Grappler® A/Ts.A true do-it-all tyre aimed at serious 4WDers, the Nitto Ridge Grappler® provides a quiet, comfortable ride with its tight centre tread while the deep, aggressive sidewall lugs afford aggressive off-road performance.This ‘hybrid’ tyre design allows the Nitto Ridge Grappler® to tackle any terrain with confidence, whether that be the Talawana Track or taking a trip to the shops.
Features
- 2-Ply or 3-Ply - All imperial sizes and a selection of metric sizes use heavy-duty, 3-ply construction while most metric sizes use a lighter, 2-ply construction to increase comfort and flexibility while still achieving higher puncture resistance when compared to most A/Ts
- Alternating Shoulder Design - Shoulder grooves are arranged in varied widths and lengths to clear mud and provide traction, joined by lateral Z groves to maximise traction
- Reinforced Tread Blocks - Tapered tread blocks featured connecting bars to add rigidity and reduce tread flex under load
- Variable Pitch Pattern - Advanced sound equipment as usedto create a pattern that's relatively quite and smooth on sealed roads for an aggressive off-road tyre
| Size | Overall Diameter | Run Flat? | Low Rolling Resistance? |
|---|---|---|---|
| 16" | |||
| 245/70 R16 118Q | 749mm | - | - |
| 265/75 R16 123Q | 804mm | - | - |
| 285/75 R16 126Q | 834mm | - | - |
| 305/70 R16 124Q | 833mm | - | - |
| 315/75 R16 127Q | 879mm | - | - |
| 17" | |||
| 33X12.5 R17 120Q | 838mm | - | - |
| 35X12.5 R17 121Q | 889mm | - | - |
| 37X12.5 R17 124Q | 940mm | - | - |
| 265/65 R17 116T | 776mm | - | - |
| 265/70 R17 121Q | 804mm | - | - |
| 285/70 R17 121Q | 831mm | - | - |
| 285/75 R17 121Q | 860mm | - | - |
| 295/70 R17 121Q | 845mm | - | - |
| 305/70 R17 121Q | 859mm | - | - |
| 18" | |||
| 33X12.5 R18 122Q | 838mm | - | - |
| 35X12.5 R18 128Q | 889mm | - | - |
| 37X12.5 R18 128Q | 940mm | - | - |
| 265/65 R18 122Q | 802mm | - | - |
| 275/65 R18 123Q | 815mm | - | - |
| 275/70 R18 125Q | 842mm | - | - |
| 285/60 R18 122Q | 799mm | - | - |
| 285/65 R18 125Q | 828mm | - | - |
| 285/70 R18 127Q | 863mm | - | - |
| 295/70 R18 129Q | 876mm | - | - |
| 20" | |||
| 33X12.5 R20 119Q | 838mm | - | - |
| 35X12.5 R20 125Q | 889mm | - | - |
| 37X12.5 R20 126Q | 940mm | - | - |
| 275/55 R20 120Q | 811mm | - | - |
| 275/60 R20 123Q | 838mm | - | - |
| 275/65 R20 126Q | 866mm | - | - |
| 285/50 R20 116Q | 793mm | - | - |
| 285/55 R20 122Q | 822mm | - | - |
| 305/55 R20 125Q | 844mm | - | - |
| 385/55 R20 122Q | 828mm | - | - |
| 22" | |||
| 33X12.5 R22 114Q | 838mm | - | - |
| 35X12.5 R22 121Q | 889mm | - | - |
